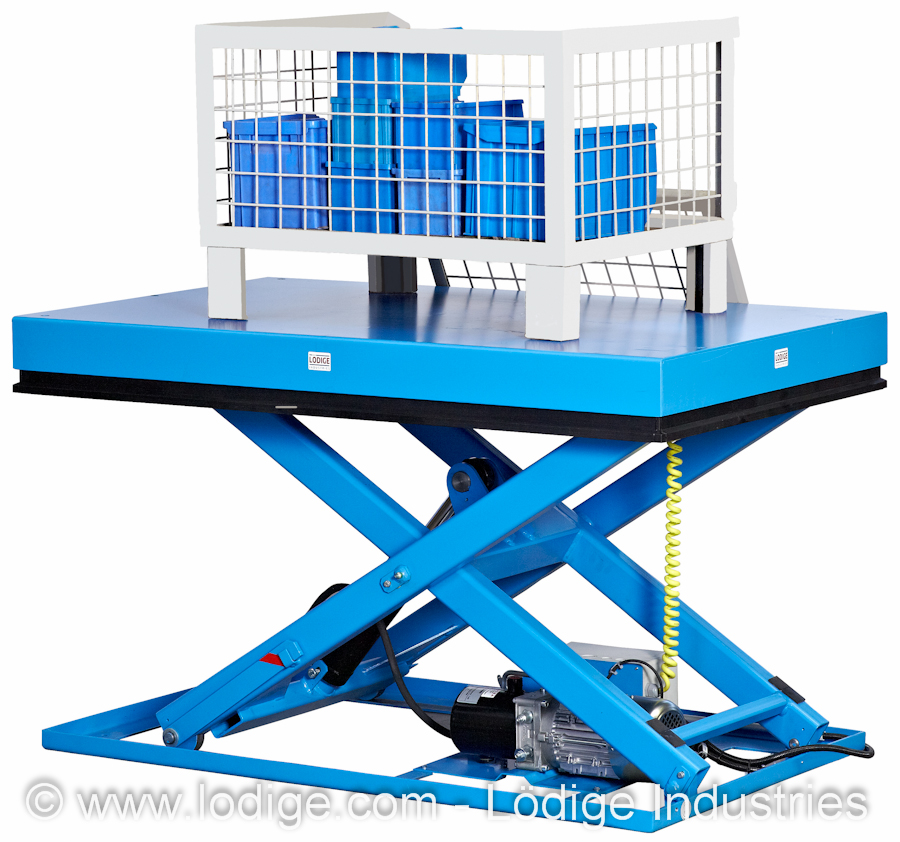

Small Class Flexible Lifting Tables

The scissor lifting tables in the Small Class are offered with a lifting height of 900 mm and in two platform sizes 1,400 x 850 mm and 1,700 x 1,200 mm. The hydraulic lifting tables support ergonomic work and enable a workflow without height differences. Due to the low tare weight of 210 kg, the lifts are easy to move with a forklift truck. They can be also flexibly adjusted.

Lifting Table Small Class | Specification:

  • Operating voltage 400 V
  • "Dead man" control by means of hand-held pendant (cable length 1.2 m)
  • Lower height limit switch
  • All round contact trip switch
  • Pipe rupture protection
  • 2 maintenance props
  • Table top made of plain sheet metal, painted
  • Paint: RAL 5015
  • Machinery Directive 2006/42/EG
  • Complies with DIN EN 1570-1 (Lift category 1)
  • Hydraulic unit and control system installed fixed on the base frame
  • IP 54 protected

Robust Lifting Tables in Middle Class with 6,000 Kg Capacity

The scissor lifting tables in the Middle Class are offered with a lifting height of 1,800 mm and a lifting capacity of 6,000 kg.The lifting tables in the Middle Class are available in any preferred size. Thanks to the modular design (base frame, scissor arms, hydraulic unit, platform sizes and options) they can be easily adapted to individual needs, taking into consideration also characteristics of loading/unloading areas.

Lifting Table Middle Class | Specification:

  • All our lifting tables meet the latest DIN EN 1570-1 (Lift category 1)
  • Machinery Directive 2006/42/EG
  • Suitable for both indoor and outdoor use
  • Operating voltage 400 V
  • Base frame consisting of a profiled frame
  • Flat steel frame
  • Pendant control panel (Cable length: min. 6 m)
  • Hydraulic unit completely wired, connected and mounted on the base frame

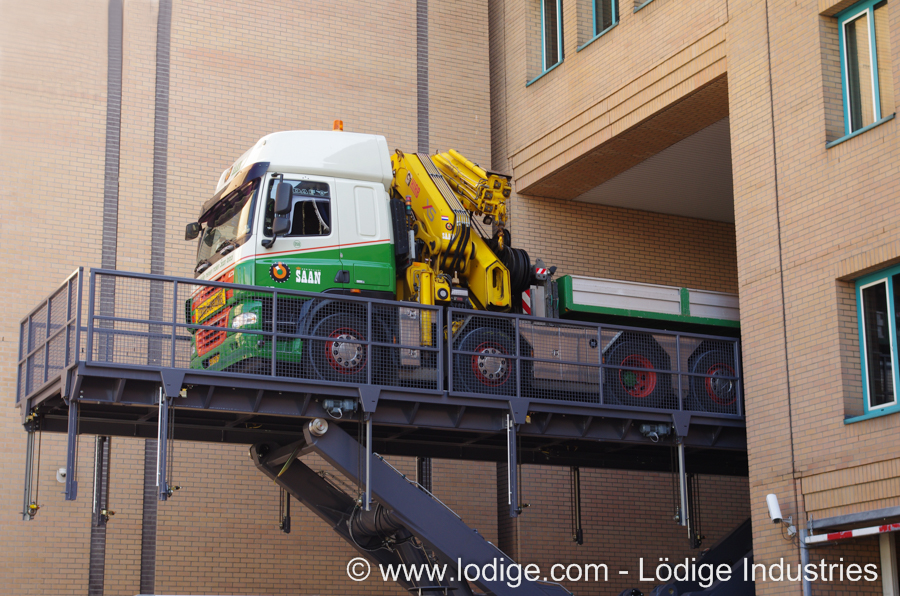

LORRY LIFTS - Lifting heavy loads with ease

Lorry Lifts are designed for loads weighing up to 100 t and elevations of up to 15 m. The Giant HS 20 is capable of raising or lowering an entire truck of up to 20 m in length to the desired loading level.

Benefits of Lorry Lifts:

  • For loads up to 100 t
  • Lift up to 15 m
  • Platforms for all conventional types of truck
  • Customer-specific superstructures
  • Save time by conveying straight to the desired level
  • Save space with the scissor lift platform instead of a ramp
  • Compliant with the EU Machinery Directive 2006/42/EC
  • Compliant with DIN EN 81-2 (on request)

Customized Solution: Special products for special applications

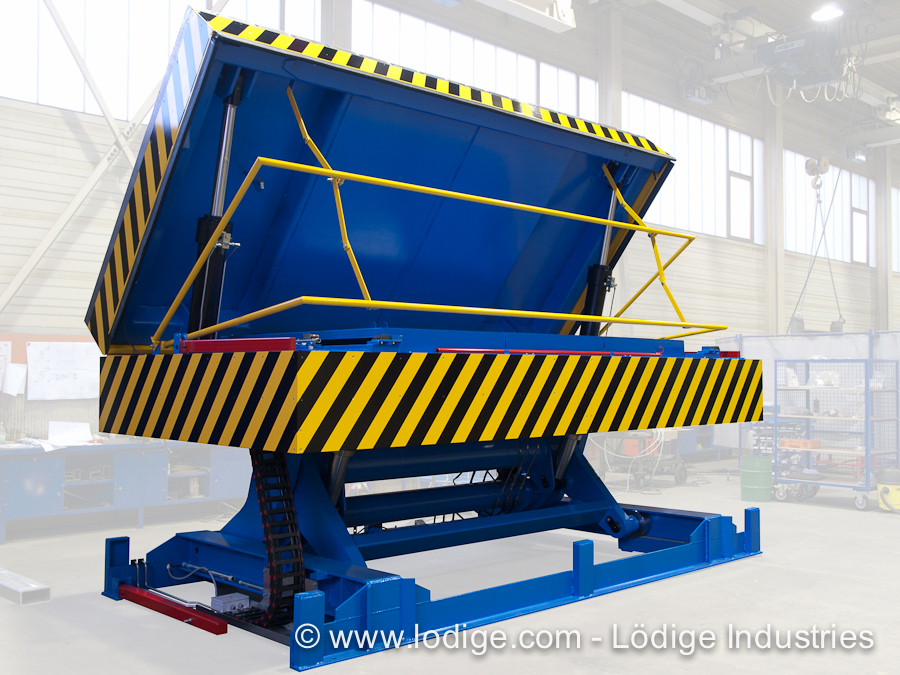

Lödige Fördertechnik GmbH delivered a lifting and tilting table for BMW in Regensburg.  It facilitates the maintenance of a pressing tool weighing several tons and offers the employees more safety and ergonomics at the workplace.

The pressing tools up to 25 t are lifted with the crane onto the 5 m x 2.5 m large table. They are then locked with locking pins on the platform and secured with T-slots screws. In order to edit pressing tools the lifting and tilting table can be up to 70 ° inclined and working height can be changed up to 900 mm.

The hole pattern and the T-slots grids on the platform were engineered specifically for BMW in order to ensure that all different modules of pressing tools can be fitted. The lifting table has an own weight of 20 tons and can be driven over with an axle load of 10 tons when collapsed.

Two identical lifting and tilting tables from Lödige Industries Group are used since 2006 in BMW plant in Dingolfing.
