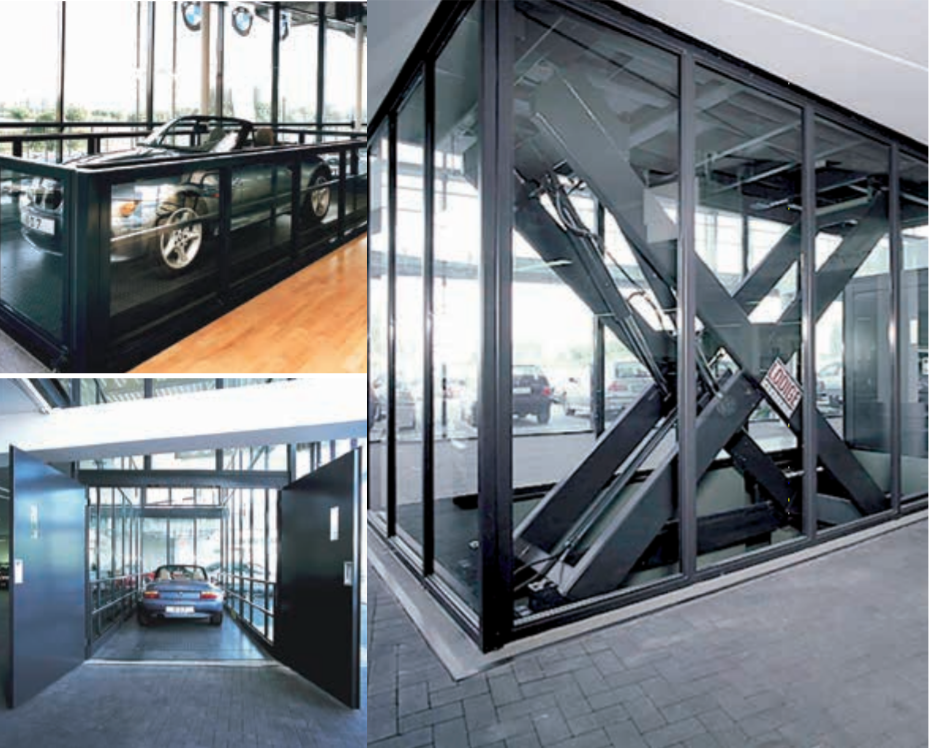

MAGUS® : PARK-AND-HIDE PRINCIPLE

Our MAGUS® car scissor lift offers a simple solution for parking one or two cars in a very confined space. Your vehicle is parked in a pit, leaving the overlying surface completely intact. In a number of projects we were able to realize different concepts for the entrance to a parking garage located in the basement. Thus, long entry ramps into a garage are not required.

Max. lifting height 2.99 m
Max. speed 0.15 m/s
Stops 2
Pit depth 650 mm
Man riding Not allowed
Directive/Norms Machine Directive 2006/42/EG
Particularly suitable for up to 2 parking places

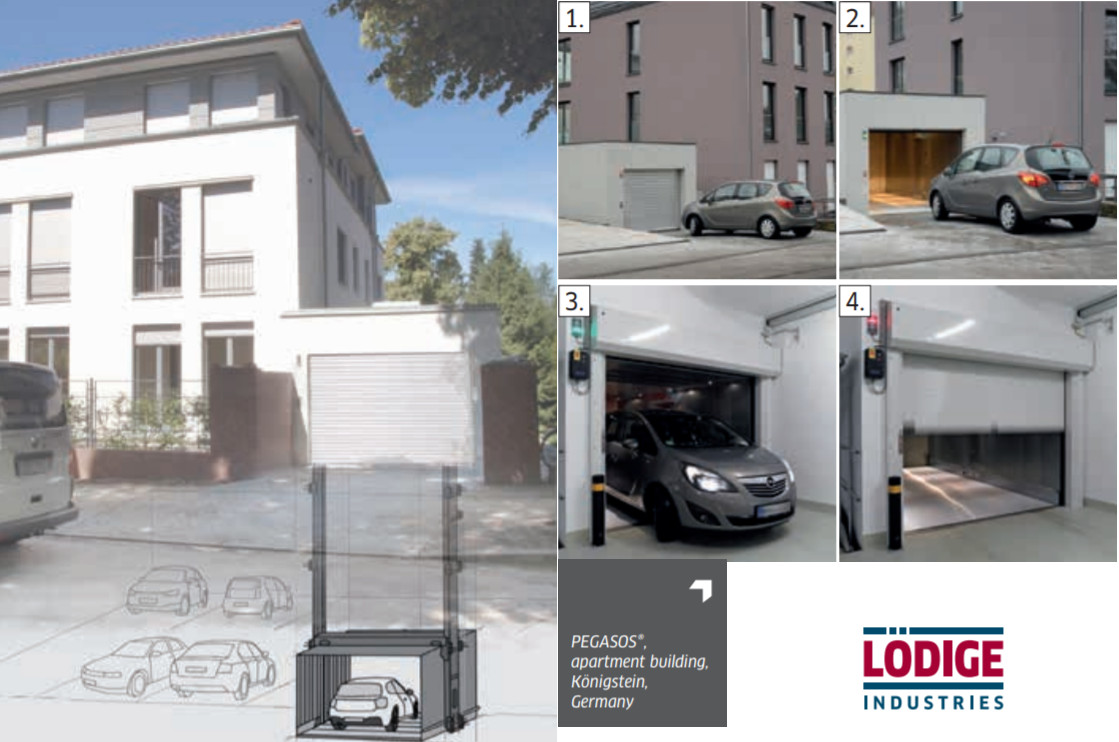

PEGASOS® : CAR LIFT WITHOUT A PIT

The PEGASOS® car lift is a perfect solution for construction projects with limited space. Due to its compact design and the elimination of the machine room, the PEGASOS® is easy to plan. Furthermore, thanks to the automatic roller doors and the low shaft head height, the PEGASOS® resembles a garage entrance.

Max. lifting height 24 m
Max. speed 0.15 m/s
Stops 2-8
Pit depth No pit required
Man riding Allowed
Directive/Norms Machine Directive 2006/42/EG
Particularly suitable for up to 20 parking places

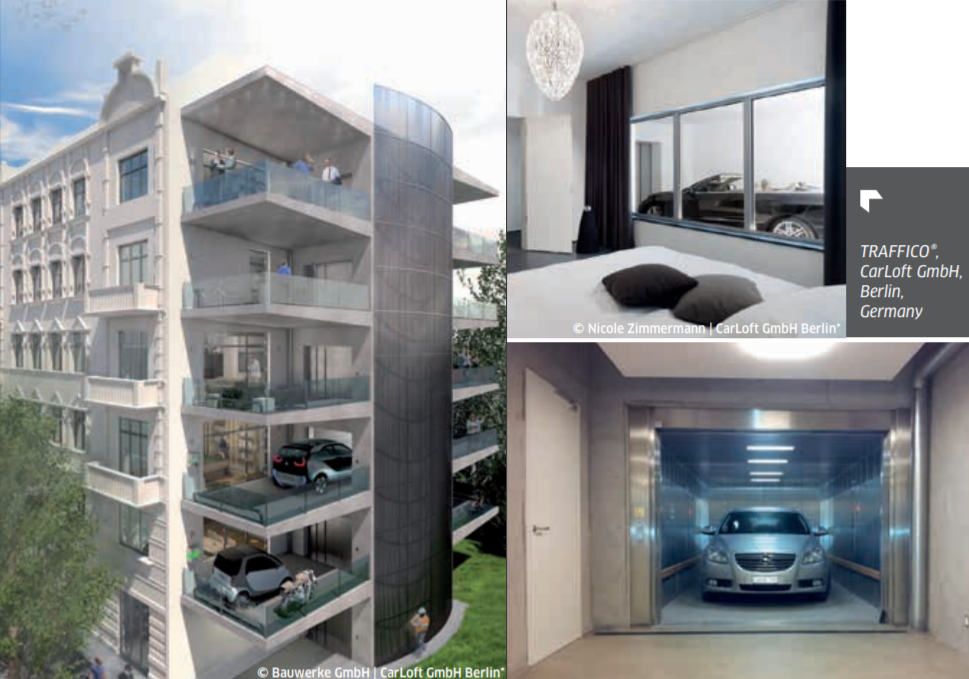

TRAFFICO® & CARRICO® CAR LIFTS

TRAFFICO® and CARRICO® lifts bring a car and ist passengers safely and comfortably to the desired parking level. Furthermore, the elimination of complex access ramp allows this space to be planned for other purposes.

  CARRICO® TRAFFICO®
Max. lifting height 24 m 24 m
Max. speed 0.15 m/s 1 m/s
Stops 2-8 2-8
Pit depth 1,250 mm 1,250 mm
Man riding Allowed Allowed
Directive/Norms Machine Directive 2006/42/EG Lift Standards EN81-20
Particularly suitable for up to 26  parking places 40  parking places

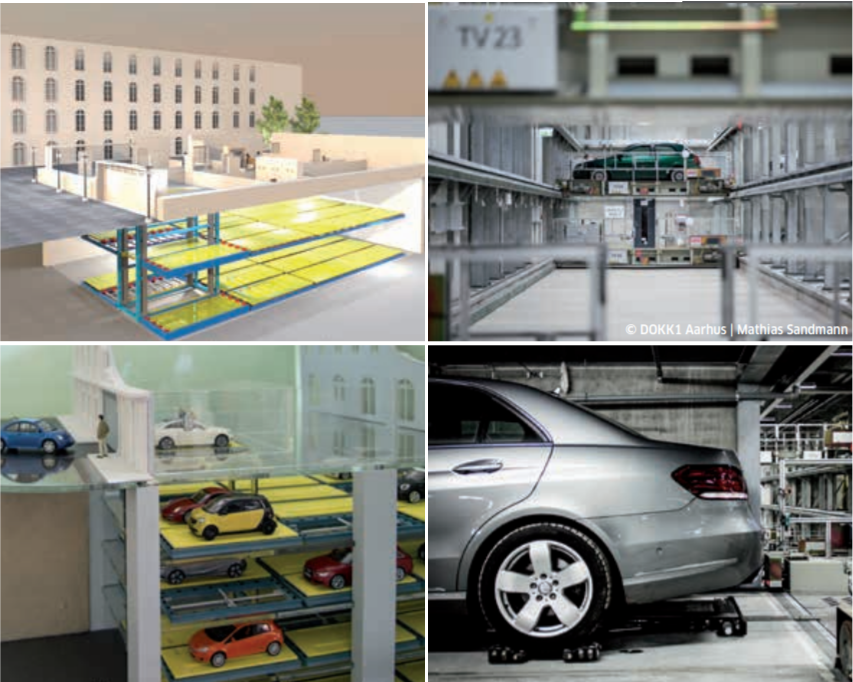

CUBILE® : Fully Automated Car Park System

The fully automated Lödige Car Park Systems CUBILE® is based on the latest technologies and are efficient, safe and space-saving parking solutions. They are planned individually, depending on the structural requirements and the wishes of the architect and building contractor. Depending on the project, the systems can provide from ten to up to hundreds of parking spots. In terms of the applied technology, they are offered as CUBILE®P and CUBILE®S.

CUBILE®P CUBILE®S
For office buildings & residential areas For big office and public buildings
Easy retrofit in existing buildings Optimised parking capacity in existing buildings
Pallet based technology Shifter based technology
Flexible use of space Maximised throughput
For up to 50 cars For high number of cars - from 50 upwards
