Technical data VICAM SSI2

Conveyor speed Up to 4.5m/s (885fpm) at 210dpi
MTBF red LED: > 75,000h
  white LED: > 80,000h
MTTR < 5 min.
Image width max. 1200mm / 47.3in
Range of power supply 115 to 230VAC (+/- 20%),
  50 to 60Hz
Input power red LED: max. 190W (225W with decoder)
  white LED: max. 180W (215W with decoder)
Category:

Description

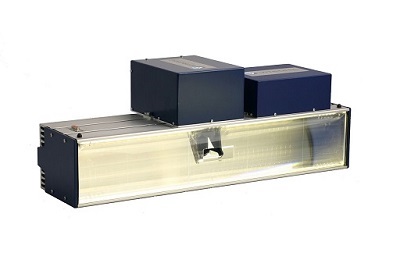

VICAM SSI2- Ensures maximum read rates and best results for OCR identification.

Auto ID system VICAM SSI2 is very helpful for companies in the storage logistics and distribution logistics sector, deploying modern auto ID to automatically and reliably process mail and parcels of goods receipt and goods issue processes is essential, as objects are automatically sorted and placed in stock and flows of goods posted after the goods item has been accurately identified.

What’s unique: for 2D barcode and simple OCR applications, all components are combined compactly in a single device. This not only saves space and also makes it easier to transport the systems and get them up and running.

Key Benefits:

  • can be used at up to 4.5 m/s and 170 dpi
  • covers object widths of up to 1200 mm
  • delivers the best image qualities
  • efficient 2D code, barcode and character reading (OCR) with maximum read rates
  • with red or white LED indicators
  • lowest power consumption
  • small and light: simplifies transport, installation and service
  • modular design and system flexibility
  • software upgrades (e.g. optical character recognition) can be done quickly and easily
  • plug & play function
  • image processing from a single source
  • offers combination of different functions (volume measurement and automatic weighing)
  • low energy consumption protects the environment



Videos

E- Cataloge

VITRONIC-VICAM-SSI2-fastest-Line-Scan-Camera

Technical Data

Mechanical Data

Dimensions (width x depth x height) 660 mm x 240 mm x 290 mm
26.0in x 9.5in x 11.4in
Weight 17kg/37lbs. (19kg/42lbs. incl. decoder)
Fixing profile groove (compatible with Bosch profile system)

Technical data VICAM SSI2

Conveyor speed Up to 4.5m/s (885fpm) at 210dpi
MTBF red LED: > 75,000h
white LED: > 80,000h
MTTR < 5 min.
Image width max. 1200mm / 47.3in
Range of power supply 115 to 230VAC (+/- 20%),
50 to 60Hz
Input power red LED: max. 190W (225W with decoder)
white LED: max. 180W (215W with decoder)

Technical Data Camera

LSC-AF (Line Scan Camera Auto Focus)
CMOS sensor line scan camera, 8k
Line frequency 37.8kHz
Pixel frequency 320MHz
Focal length 80mm / 100mm / 135mm

Techn. data illumination unit

LEDI-AF (LED Illumination Auto Focus)
Color attributes white: 4100K color temperature
red: 640nm wave length
LED class 1 (eye-safe)

Techn. data power supply unit

PSM (Power Supply Module)
Range of power supply 115VAC, 230VAC
Input power max. 240W
Degree of efficiency 92% at 115VAC, 93% at 230VAC
Interference impulses
(according to EN61000-6-2)
standard is exceeded with +/- 4kV
Features active transient filter;
intelligent inrush current
limiter;
managed by a microcontroller

Techn. data decoder unit

MHPC (Mini HookUp PC)
Processor Pentium Core 2 Duo 1.6GHz
RAM 2 Gigabyte
Memory SSD 16GByte (40GByte, optionally)
Environmental conditions
Ambient temperatures +32°F to +140°F / 0°C to +60°C (without decoder)
+32°F to +122°F / 0°C to +50°C (with decoder)
Storage temperatures +14°F to +140°F / -10°C to +60°C
Humidity 10 to 95 %, non-condensing
Protection class IP 54
