Sensor unit

 Decode unit

Dimensions (B x T x H) 315mm x 250mm x 137mm
12.4inch x 9.9inch x 5.4inch
305mm x 288mm x 131mm
12inch x 11.3inch x 5.2inch
Weight < 4kg / 9lbs 7kg / 15.4lbs
Mount tool-free, plug & play can be mounted with screws
Power supply 115VAC to 230VAC (50Hz to 60Hz) 115VAC to 230VAC (50Hz to 60Hz)
Operating temperatures 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage temperatures -10°C to 60°C (14°F to 140°F) -10°C to 60°C (14°F to 140°F)
Humidity 10% to 90%, non-condensing 10% to 90%, non-condensing
Protection class IP54 IP50, industrial case
Compliance RoHS, CE, FCC RoHS, CE, FCC
Category:

Description

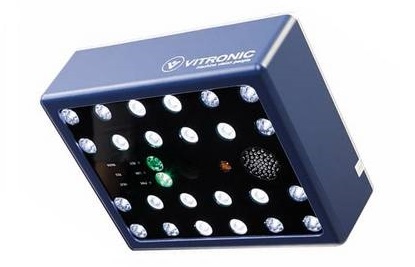

VICAM SNAP! is a Stationary Auto ID System for:

  • manually sorting large envelopes
  • recording of parcels at goods receipt
  • recording returns
  • picking goods for shipment
  • checking orders in goods outward
  • Pick-to-Light/Put-to-Light applications
  • Sort-by-Voice applications



Videos

E- Cataloge

VITRONIC-VICAMSnap-Multipurpose-Camera-based-auto-ID

Technical Data & Performance

Sensor Unit

High-performance matrix camera 5MPixel
Standard: 10Fps
higher data on request
White LED illumination long-life durability
homogeneous illumination
LED class 1 (eye-safe)
no flashing
Standard lens C-Mount
individually adaptable for
the application (optional)
Working distance 1300mm
+- 150mm
51inch +- 6inch
Audio feedback 90dB, configurable
spoken instructions,
multilingual
Status LED 6 LEDs, different colors
Case Robust leightweight fiberglass case
Safety eyelet
Plug & Play
IO Trigger (optional)
Speed sensor (optional),
Other 24V IOs (optional)

Performance Data

Read area (B x T x H) 310mm x 260mm x 300mm
12.2inch x 10.2inch x
12inch at 200dpi,
with standard lens
Higher dpi possible by
adjustment of read area
Object speed up to 2,5m/s / 490fpm
MTBF 80.000h
MTTR < 2min

Function

GUI / Graphical user interface Configuration
Statistics
Status
Display screen (last read)
No calibration necessary

Decode Unit

Interface Gigabit Ethernet
RS232 (optional)
VGA
USB
Power

Sensor unit

Decode unit

Dimensions (B x T x H) 315mm x 250mm x 137mm
12.4inch x 9.9inch x 5.4inch
305mm x 288mm x 131mm
12inch x 11.3inch x 5.2inch
Weight < 4kg / 9lbs 7kg / 15.4lbs
Mount tool-free, plug & play can be mounted with screws
Power supply 115VAC to 230VAC (50Hz to 60Hz) 115VAC to 230VAC (50Hz to 60Hz)
Operating temperatures 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage temperatures -10°C to 60°C (14°F to 140°F) -10°C to 60°C (14°F to 140°F)
Humidity 10% to 90%, non-condensing 10% to 90%, non-condensing
Protection class IP54 IP50, industrial case
Compliance RoHS, CE, FCC RoHS, CE, FCC
